SKU: 10131

Itecca.shop

1,000LPM - HIGH FLOW PUMPS · IP-55

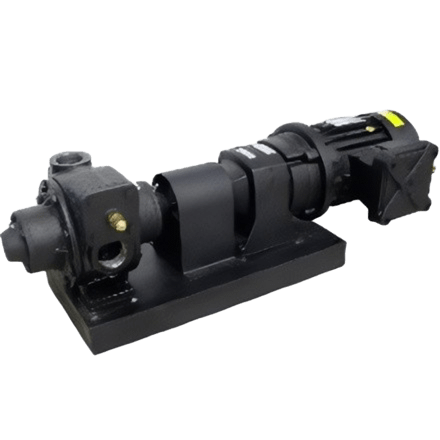

1,000LPM - HIGH FLOW PUMPS · IP-55

$17,974.55 AUD
$17,974.55 AUD
Sale Sold out
  • Bedplate vane pumps of high flow, self-suction, positive displacement, constant flow, inaudible and heavy-duty
  • The transfer is quick, uniform and inaudible.
  • The pump has built-in bypass valve.
  • It is specially intended for the transfer of high volumes, S-1 service, continuous for fuel tank charging and discharging, storage of fuel, hydrocarbon, diesel and another non-corrosive fluid and without solid particles in suspension.
BDP-1000 · F3" · IP-55

TECHNICAL DATA

PUMP

  • Flow: 1,000 l/min
  • Operation pressure: 3.5 bar
  • 640 rpm
  • Connection through weldable flange of 3"
  • Recommended diameters:
    • suction-delivery connection: Ø4"
  • Moto-pump group performance: horizontal
  • Bypass built-in

MOTOR

  • Voltage: 400/690 VAC triphasic
  • Frequency: 50 Hz
  • Powe: 7.5 kW
  • IP-55 protection
  • Condensable protection: encapsulated
  • Turn speed: 1,500 rpm
  • Insulation: F Class
  • Reducer/motor coupling: flange
  • Noise level: 80 dB(A)
