SKU: 10101

Itecca.shop

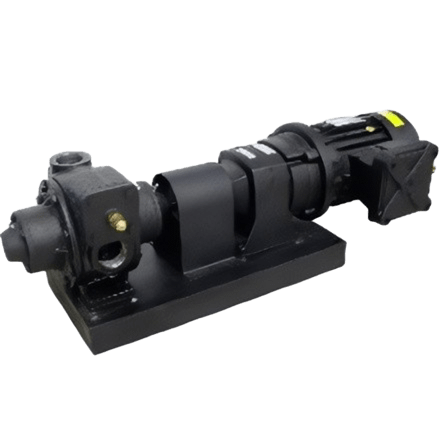

200LPM - BDP-200 230/400 VAC IP-55 - F11/2" BSP

200LPM - BDP-200 230/400 VAC IP-55 - F11/2" BSP

$11,614.80 AUD
$11,614.80 AUD
Sale Sold out
  • Bedplate vane pumps of high flow, self-suction, positive displacement, constant flow, inaudible and heavy-duty
  • The transfer is quick, uniform and inaudible.
  • The pump has built-in bypass valve.
  • It is specially intended for the transfer of high volumes, S-1 service, continuous for fuel tank charging and discharging, storage of fuel, hydrocarbon, diesel and another non-corrosive fluid and without solid particles in suspension.
BDP-200 · F1 1/2" · IP-55

TECHNICAL DATA

PUMP

    • Flow: 200 l/min
    • Operation pressure: 3.5 bar
    • 740 rpm
    • Connection through thread of 1 1/2"
    • Recommended diameters:
      • suction-delivery connection: Ø2"
    • Moto-pump group performance: horizontal
    • Bypass built-in

    MOTOR

    • Voltage: 230/400 VAC triphasic
    • Frequency: 50 Hz
    • Power: 2.2 kW
    • IP-55 protection
    • Condensable protection: PTC probes
    • 1,500 rpm
    • Insulation: F Class
    • Reducer/motor coupling: flange
    • Noise level: 80 dB(A)
