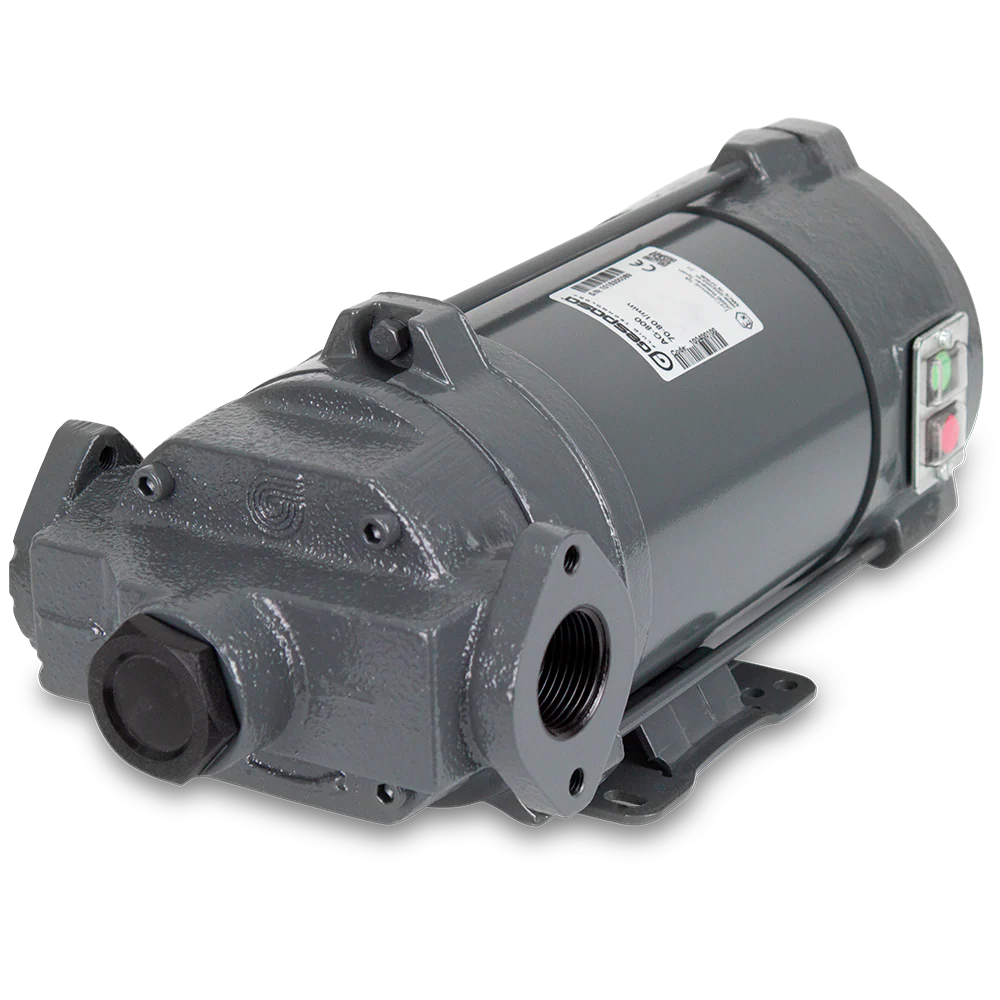

AG-800 230 VAC 70-80 l/min

 AG-800 230 VAC 70-80 l/min

·         Self-suction - self-priming, explosion proof, eccentric with self-adjusting blades

·         With re circulation bypass

·         Suction: 2.7 m

·         Priming pipe suction: 5 m

·         Free flow: 70-80 l/min

·         Consumption: 2.3-3.5 A

·         Motor: 0.37 kW 230 VAC 50 Hz single-phase EExd

·         1,430 rpm

·         S2 30´ operation

·         IP-55 protection

·         Operation temperature: -10 ºC · +40 ºC

·         ATEX Class: II2G

·         Protection mode (own supply): Ex h IIB T4 Gb

·         With thermal protector

·         Connection: through F1" (BSP) threads and flanges

·         ON/OFF switch

·         3 m cable

·         Anti-rust treatment

Size and weight (approx.):

·         Size: 350x165x155 mm (length x width x height)

·         Weight: 17,4 kg
