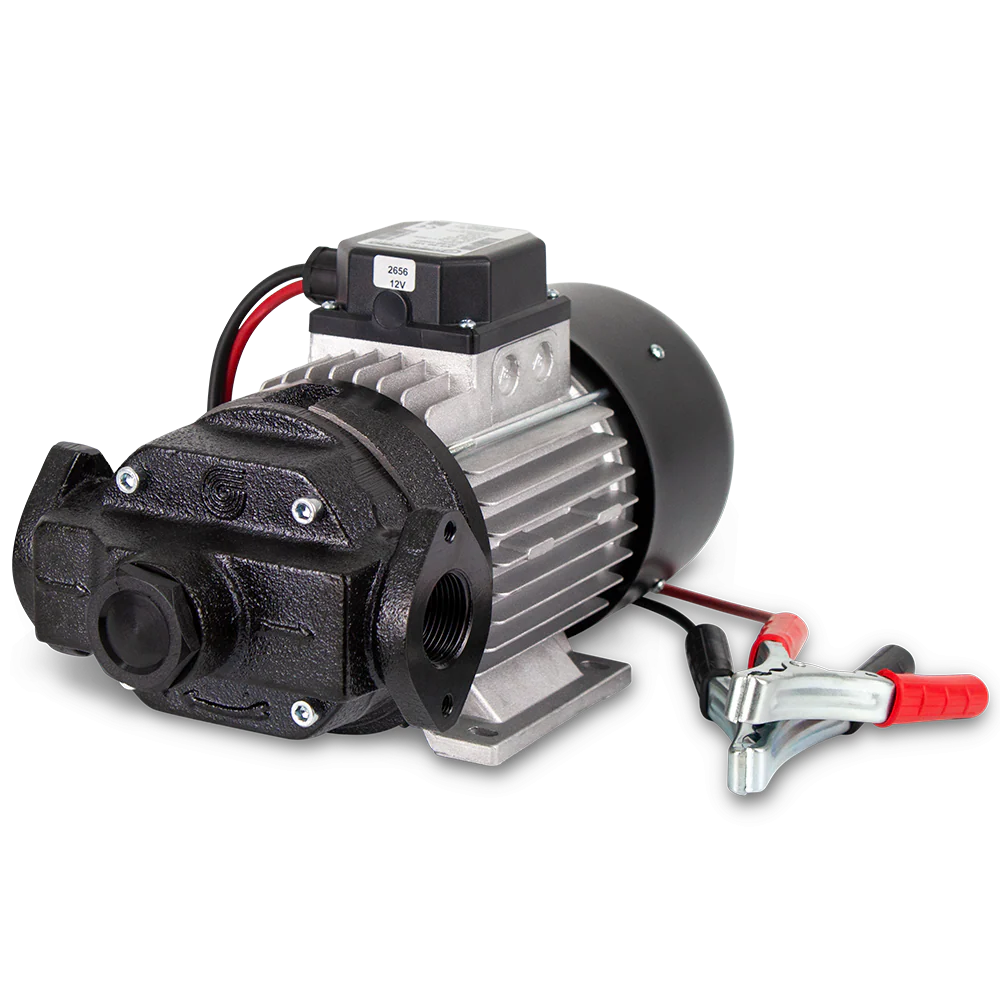

AG-90 Pump 12V DC

• Self-priming-self-priming. Self-adjusting vane eccentric
• Equipped with recirculation by-pass
• Suction: 2.7 m Delivery: 20 m
• Suction with primed circuit: 5 m
• Flow with free outlet: 70-80 l/min
• Consumption: 35-53 A (12 VDC) and 24-32 A (24 VDC)
• Motor: 0.37 kW (12 and 24 VDC) self-ventilated, protected against dust
• 1500rpm
• continuous operation
• tropicalized
• IP-55 protection
• Connection via F1" (BSP) threads and flanges
• 3 m cable with clips
• antirust treatment

Weight and dimensions - 15.5kg - 350mm x 165mm x 175mm (length x width x height)
