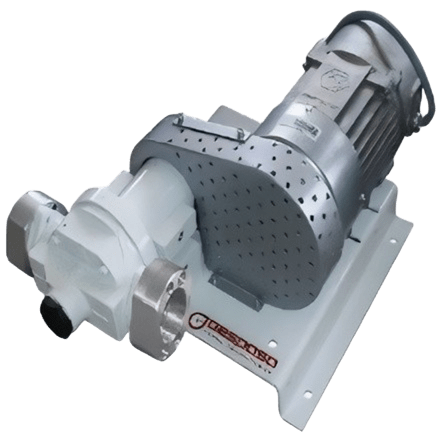

BAG-800 230/400 VAC
-
Self-suction - self-priming. Eccentric of self-adjusting blades
-
With re-circulation bypass
-
Free flow: 100-150 l/min
-
Consumption: 3.3-5.8 A (230/400 VAC) · 5.7-6.3 A (230 VAC)
-
Motor:
-
1 kW 230/400 VAC 50 Hz 3ph
-
1 kW 230 VAC 50 Hz single-phase
-
-
Explosion proof (ATEX)
-
1,410 rpm
-
With thermal protector
-
S1 continuous duty
-
Motor zone classification: II 2G EExd IIB T3
-
Motor Certificate: TÜV IT 11 ATEX 012X
-
Operation temperature: 0 ºC - +50 ºC
-
Inlet/outlet connection: 1 1/2" BSP
-
Bypass pressure: 3 bar
