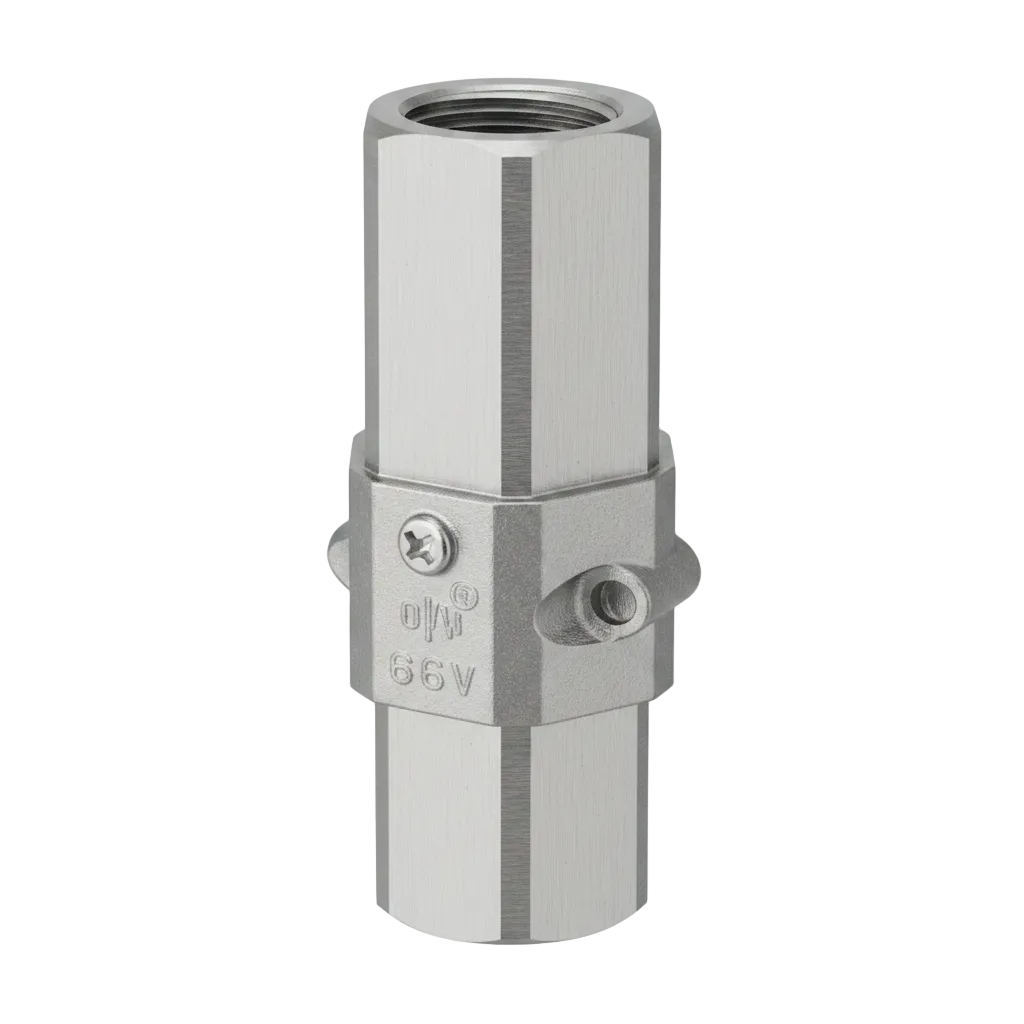

BREAKAWAY VALVES

$71.50 AUD

Sale Sold out

The breakaway valves are designed to be installed in the fuel supply hoses and they will be separated when there was a strong pull. The double seat valve automatically cuts the fuel supply, limiting any fuel leak and protecting the suppy kit.

Body: aluminium
Main seals: Viton
Main spring: stainless steel
Guide and poppet: POM
Protective sleeve: PVC

The valve is designed to be replaced after the separation.

	Connection threads	Flow	Weight
802	BSP 3/4" x BSP 3/4"	0-60 l/min	230 g
804	BSP 1" x BSP 1"	0-120 l/min	320 g
