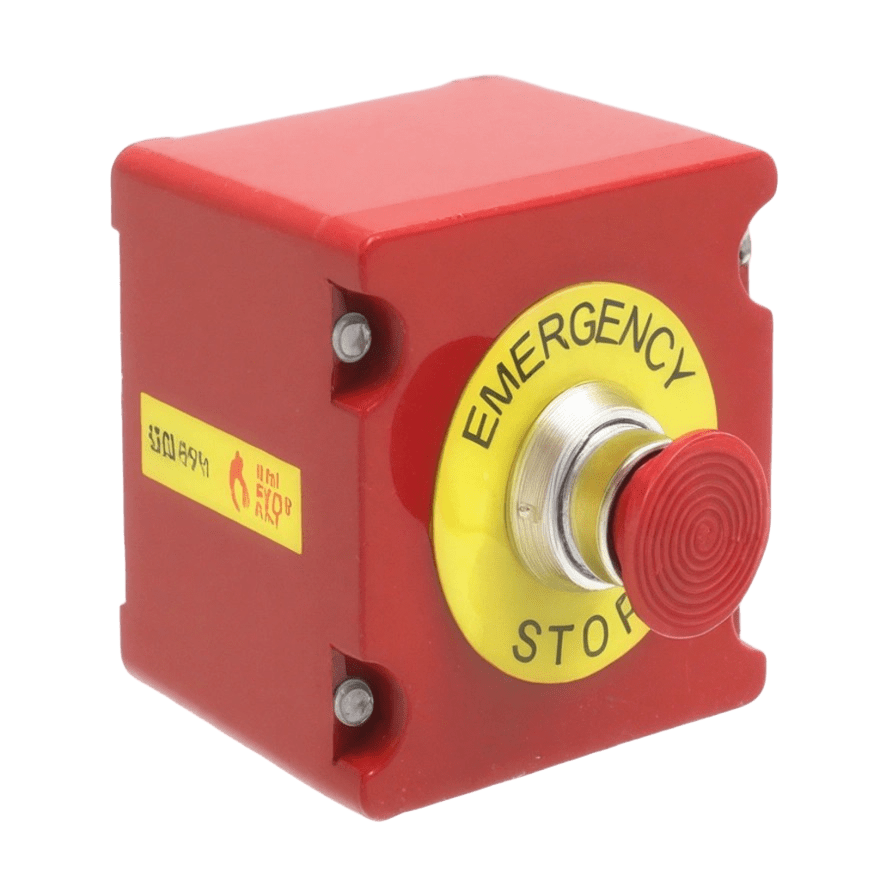

Fire Rated Emergency Stop Control Station

This F300 fire rated Emergency Stop control station is supplied in an IP65 polyester powder painted (Red RAL 3020) die cast aluminium enclosure. The unit
is fitted with 2 normally open and 2 normally closed contact blocks. The actuation is via a mushroom pushbutton that latches when pressed maintaining the
contact open position, the pushbutton has a pull to reset operation. Each unit has been designed to withstand 300°C for 60mins.

Actuator Emergency Stop mushroom pull-to-reset
Legend Emergency Stop circular yellow
Contacts 2N/C + 2N/ O (S1)
Dimensions D5
Enclosure Material Die- Cast Aluminium
Enclosure Colour Red (RAL 3020)
IP Rating IP65
FireF300 Rated
Entries 2 x M20
Fixings4 x M5
