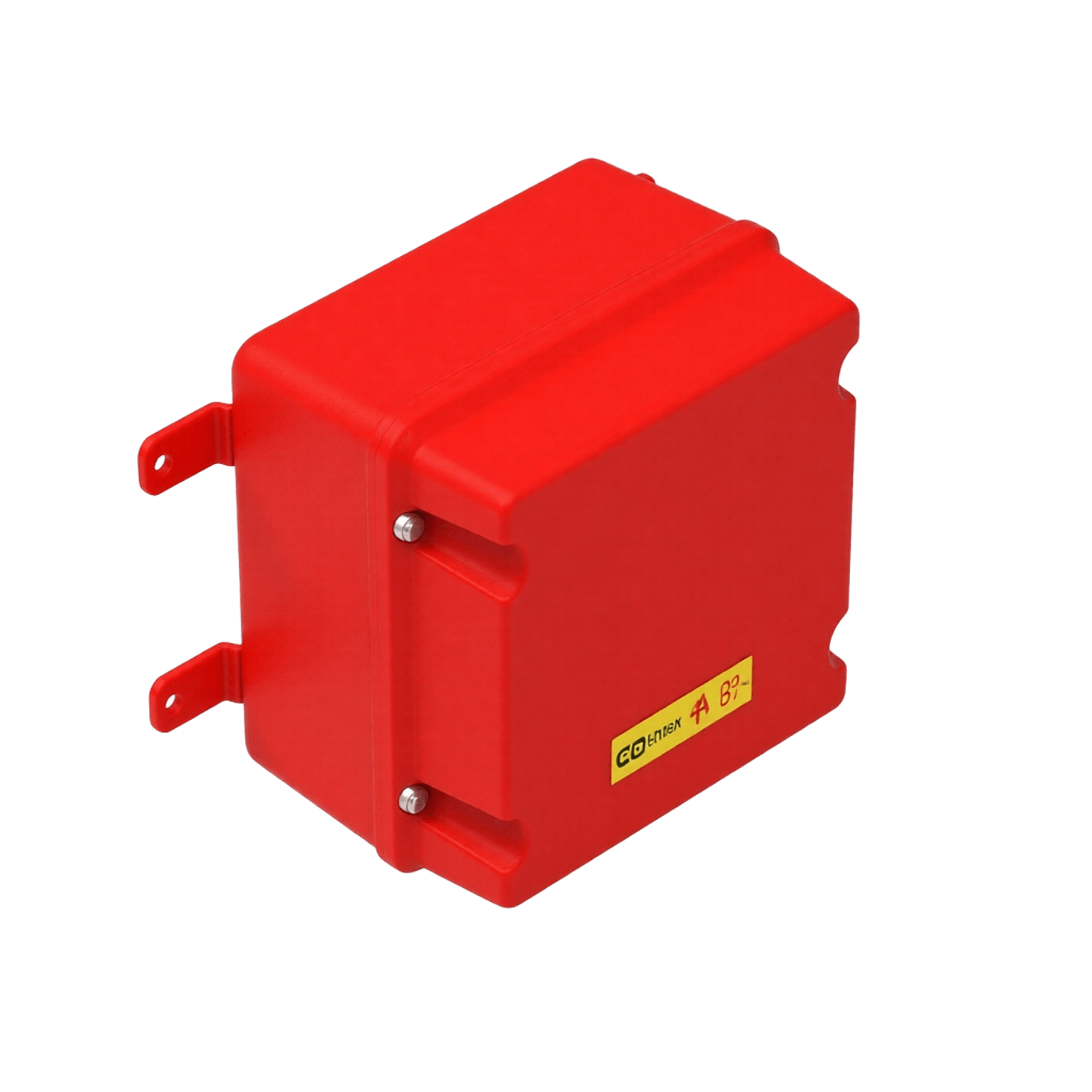

Fire Rated Terminal Box

To complement our fire rated switchgear range, we have introduced a new F400 Terminal Junction Box. We offer two variants with 8-way or 12-way wire in / wire out terminals. The terminals are constructed from high temperature grade ceramic material and stainless steel cable terminals.

Each IP65 F400 Terminal Junction Box box enclosure is manufactured from die-cast aluminium with a powder coated Traffic Red (RAL 3020) finish, cover fixings in A2 stainless steel and two M20 threaded cable entries. Each enclosure is supplied with internal wall mounting fixings as standard, which are positioned outside of the IP seal. External wall mounting fixing feet are available on request. Use Cat No. F400EF.

All units have been tested to withstand 400°C for 2 hours
