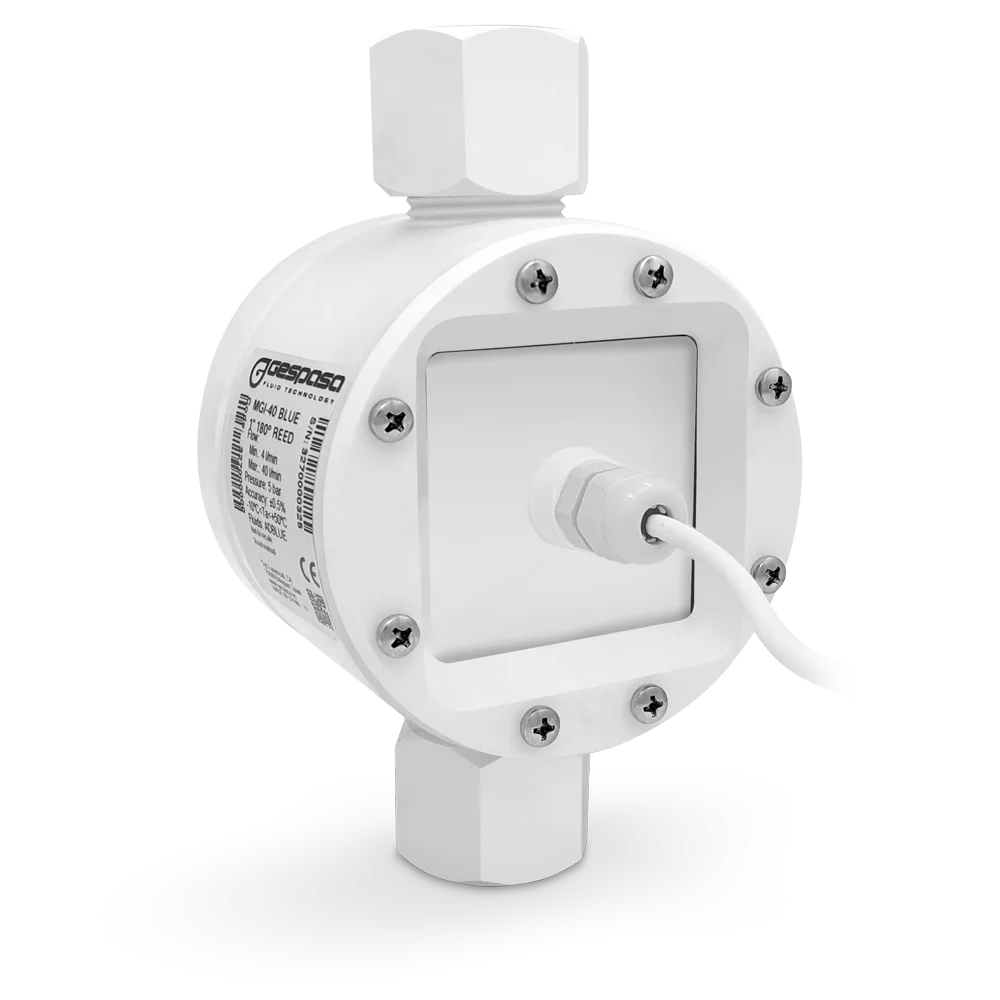

MGI-40 BLUE F1" Pulse Meter

1.    MGI-40BLUE F1" Pulse Meter

Use
•    Pulse meter for its in-line assembly, making easier the exact information of the fluid management and control systems.
Technical data:
•    Flow: 4-40 l/min
•    Maximum current: 100 mA
•    Maximum voltage: 28 VDC/VAC
•    Accuracy: ±0.8 %
•    Maximum pressure: 5 bar • Break pressure: 10 bar
•    Min./Max. temperature: -10 / +50 ºC
•    Max. Humidity: 95 HR
•    Two communication channels through REEDS
•    Pulses: 94 ±2 % pulses per litre and channel
•    Inlet/outlet connection thread: F1" GAS (BSP) with PA adapters
•    Measuring chamber: POM
•    1.9 m cable
Size and weight (approx.):
•    Dim.: 103.5x80x170 mm (diameter x width x height)
•    Weight: 0.887 kg
