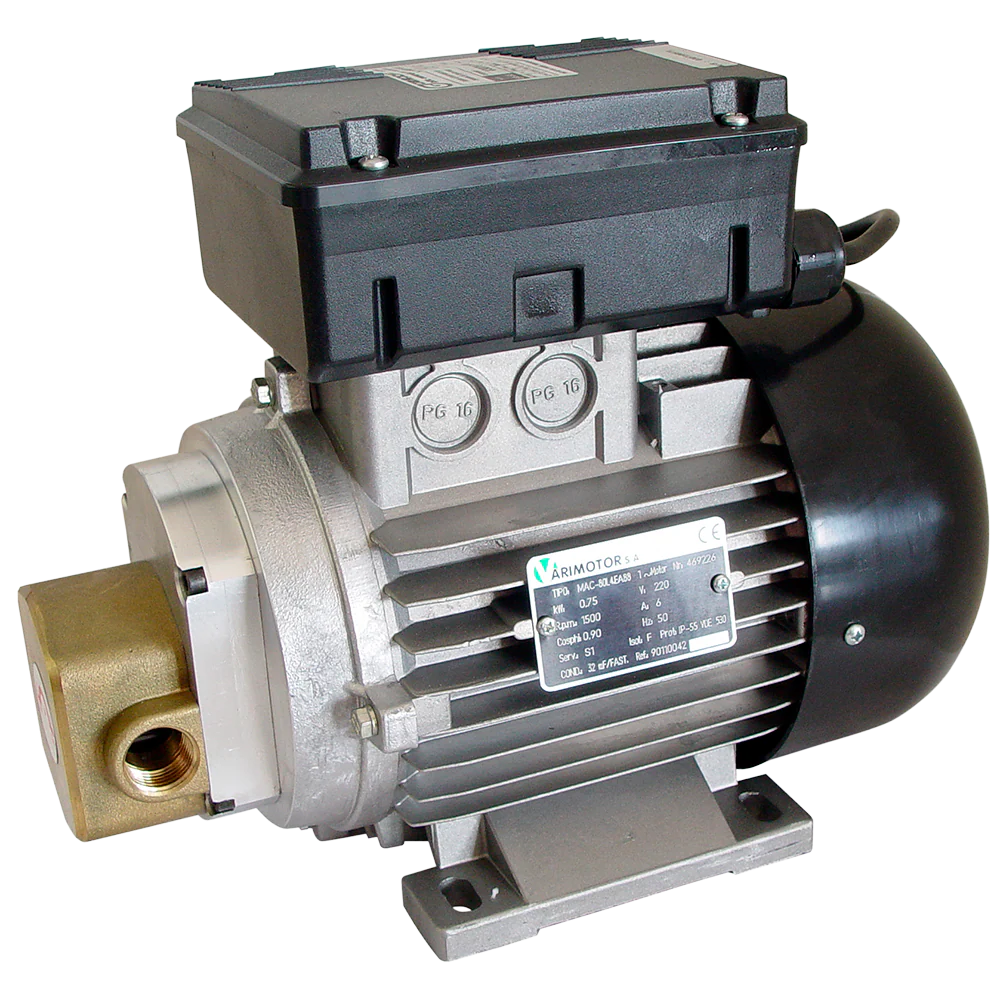

SELF SUCTION GEAR PUMP EA-88 (0.74 kW) 230V AC

• Self-suction gear pump for the lubricant transfer.
• They are suitable for its use in the agriculture, building, public works and industry.

Technical data:

• With recirculation bypass system
• It is suitable for lubricant of maximum viscosity 350 cSt
• Suction: 2.5 m · Delivery: 40 m
• Flow: 20-25 l/min (SAE-20/50 W at 25 ºC)
• Motor: 0.74 kW self-ventilated 230 VAC 50/60 Hz single-phase
• IP-55 protection
• With thermal protector
• Consumption: 4-6 A
• 1,500 rpm
• Bypass pressure: 9-10 bar
• Inlet / outlet tube: 1/2" GAS (BSP)
• ON/OFF Switch
• 3 m 230 VAC connection cable with injected plug
